Mastering Frontend System Design: The RADIO Framework for Technical Interviews

Frontend system design interviews can be intimidating, but with the right framework, you can approach them systematically and confidently. Today, we'll explore the RADIO framework - a structured methodology that has helped countless engineers excel in their frontend system design interviews.

Special thanks to GreatFrontEnd for their comprehensive system design resources that inspired this guide.

Why Structure Matters in System Design

Unlike coding interviews with clear right/wrong answers, system design interviews are open-ended and deliberately vague. This ambiguity is intentional - interviewers want to see how you think, prioritize, and communicate complex technical concepts.

The RADIO framework provides the structure you need to:

• ✅ Navigate ambiguous requirements systematically
• ✅ Demonstrate comprehensive technical thinking
• ✅ Show real-world engineering judgment
• ✅ Communicate effectively under pressure

The RADIO Framework Breakdown

RADIO stands for:

• Requirements exploration
• Architecture / High-level design
• Data model / Core entities
• Interface definition (API)
• Optimizations and deep dive

Let's dive into each phase:

🔍 R - Requirements Exploration (15% of time)

Objective: Transform a vague problem statement into concrete, actionable requirements.

Key Questions to Ask

Scope and Focus

- What are the main use cases we should focus on?
- Which features define this product's core value?
- What are the functional vs. non-functional requirements?

Technical Constraints

- What devices/platforms need support? (desktop/mobile/tablet)
- Is offline functionality required?
- What are our performance targets?
- Who are the primary users?

Example: "Design Facebook"

Instead of diving into implementation, clarify:

• Focus on news feed, not messaging or groups
• Support web desktop and mobile
• Handle thousands of posts efficiently
• Prioritize content loading speed

Pro Tip: Write down agreed requirements and refer back to them throughout the interview.

🏗️ A - Architecture / High-level Design (20% of time)

Objective: Identify key components and their relationships in your frontend system.

Common Frontend Components

Design Principles

1. Separation of Concerns: Each component has a clear, distinct responsibility
2. Data Flow: Define how information moves between components
3. Computation Location: Decide what happens client-side vs. server-side

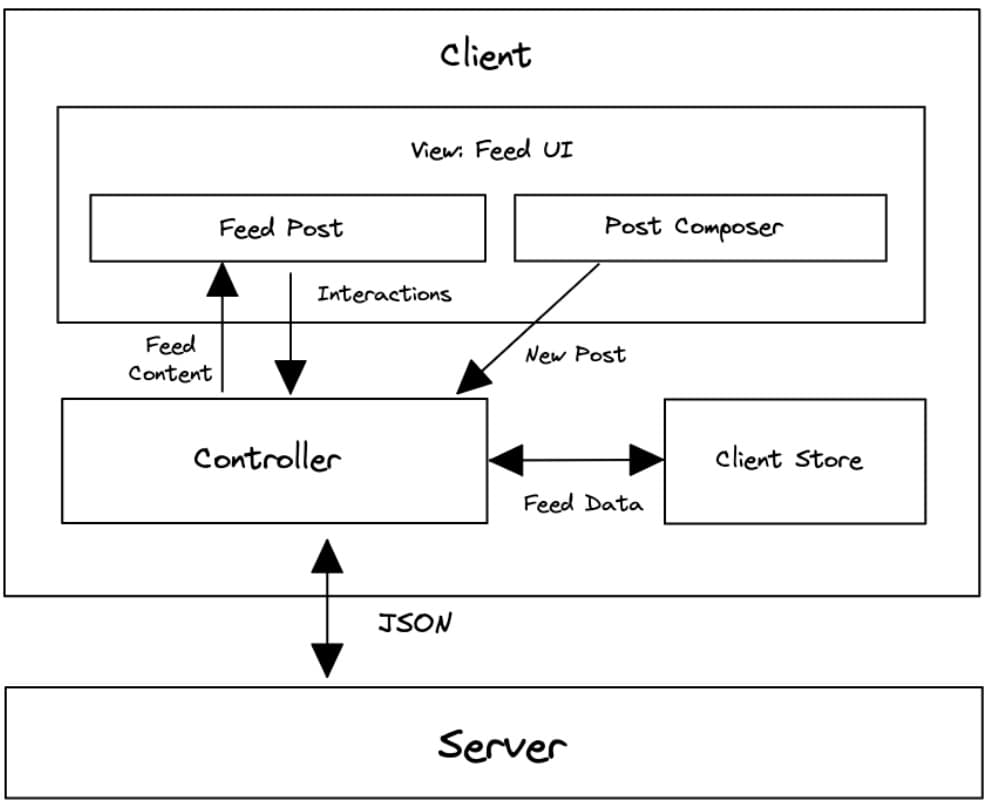

Example Architecture: News Feed

📊 D - Data Model / Core Entities (10% of time)

Objective: Define what data exists in your system and where it lives.

Types of Frontend Data

1. Server-originated: User profiles, posts, comments
2. Client-only persistent: Form inputs, user preferences
3. Client-only ephemeral: UI state, loading indicators

Example Data Model: News Feed

🔌 I - Interface Definition (15% of time)

Objective: Define how components communicate with each other.

Server-Client APIs

// GET /api/feed
Request: {
  cursor: "eyJpZCI6MTIzfQ==",
  limit: 20
}

Response: {
  posts: [
    {
      id: "123",
      content: "Hello world!",
      author: {
        id: "456",
        name: "John Doe",
        avatar: "https://example.com/avatar.jpg"
      },
      timestamp: "2025-06-15T10:30:00Z",
      reactions: { likes: 42, shares: 5 }
    }
  ],
  pagination: {
    nextCursor: "eyJpZCI6MTI0fQ==",
    hasMore: true
  }
}

Client-Client APIs

// Component communication
class FeedController {
  async loadFeed(cursor = null) {
    const response = await fetchFeed({ cursor, limit: 20 })
    this.store.updateFeed(response)
    return response
  }

  async createPost(content) {
    const post = await submitPost(content)
    this.store.prependPost(post)
    return post
  }
}

⚡ O - Optimizations and Deep Dive (40% of time)

Objective: Demonstrate deep technical knowledge and real-world engineering judgment.

Performance Optimizations

Loading Performance

• Implement virtual scrolling for long feeds
• Use image lazy loading and progressive JPEGs
• Implement critical CSS and code splitting
• Add service worker for caching strategies

Runtime Performance

• Debounce search inputs and scroll events
• Use React.memo() or similar for expensive components
• Implement efficient diff algorithms for feed updates
• Add skeleton screens for perceived performance

User Experience Enhancements

Responsive Design

/* Mobile-first approach */
.feed-container {
  display: flex;
  flex-direction: column;
}

@media (min-width: 768px) {
  .feed-container {
    flex-direction: row;
    gap: 2rem;
  }
}

Error Handling

• Implement retry mechanisms for failed requests
• Show meaningful error messages
• Provide offline fallbacks
• Add loading states and progress indicators

Scalability Considerations

State Management

// Efficient feed state management
const feedReducer = (state, action) => {
  switch (action.type) {
    case 'LOAD_POSTS':
      return {
        ...state,
        posts: [...state.posts, ...action.posts],
        isLoading: false,
      }
    case 'UPDATE_POST':
      return {
        ...state,
        posts: state.posts.map((post) => (post.id === action.post.id ? action.post : post)),
      }
  }
}

Network Optimization

• Implement request batching and deduplication
• Use GraphQL for precise data fetching
• Add optimistic updates for better UX
• Implement progressive loading strategies

Security & Accessibility

Security Measures

• Sanitize user-generated content (XSS prevention)
• Implement CSP headers
• Use HTTPS for all API calls
• Validate inputs on both client and server

Accessibility Features

// Accessible feed post component
const FeedPost = ({ post }) => (
  <article role="article" aria-labelledby={`post-${post.id}-title`} tabIndex={0}>
    <h2 id={`post-${post.id}-title`} className="sr-only">
      Post by {post.author.name}
    </h2>
    <button aria-label={`Like post by ${post.author.name}`} onClick={handleLike}>
      👍 {post.likes}
    </button>
  </article>
)

Interview Success Tips

Do's ✅

• Ask clarifying questions before diving into solutions
• Think out loud - share your reasoning process
• Start simple then add complexity
• Draw diagrams to visualize your architecture
• Consider edge cases and error scenarios
• Discuss tradeoffs between different approaches

Don'ts ❌

• Don't assume requirements - always clarify first
• Don't focus only on happy paths - consider failures
• Don't over-engineer the initial solution
• Don't ignore the time constraints of each phase
• Don't forget about non-functional requirements

Real-World Application

The RADIO framework isn't just for interviews - it's a powerful tool for:

• Architecture planning in real projects
• Code review discussions
• Technical documentation writing
• Team design sessions

Final Summary: Your RADIO Checklist

Here's a quick reference guide to ensure you cover all essential aspects during your frontend system design interview:

🔍 Requirements (15%) - Get Crystal Clear

• Clarify the scope: What specific features to focus on?
• Define functional requirements: Core features that must work
• Identify non-functional requirements: Performance, scalability, UX
• Understand constraints: Devices, platforms, offline needs
• Write down agreed requirements for reference

🏗️ Architecture (20%) - Design the Foundation

• Identify key components: Server, Views, Controllers, Stores
• Define component responsibilities: What each component does
• Show component relationships: How they interact
• Draw a clear diagram: Visual representation of your system
• Consider separation of concerns: Keep components focused

📊 Data Model (10%) - Structure Your Information

• List server-originated data: User profiles, posts, shared data
• Identify client-only data: UI state, form inputs, temporary data
• Map data to components: Which component owns what data
• Define data fields: What information each entity contains
• Consider data relationships: How entities connect

🔌 Interface (15%) - Connect the Pieces

• Define server APIs: HTTP methods, endpoints, parameters
• Specify API responses: Data format and structure
• Design client interfaces: Component communication methods
• Document function signatures: Parameters and return values
• Consider error handling: API failure scenarios

⚡ Optimizations (40%) - Show Your Expertise

• Performance optimizations: Loading, runtime, perceived performance
• User experience: Responsive design, error handling, accessibility
• Scalability considerations: State management, caching strategies
• Security measures: XSS prevention, input validation
• Real-world tradeoffs: Discuss pros/cons of different approaches

🎯 Interview Success Formula

Preparation = Structure + Practice + Communication

1. Master the framework: Practice RADIO on different problem types
2. Think out loud: Share your reasoning process with the interviewer
3. Ask questions: Clarify requirements before diving into solutions
4. Start simple: Build complexity incrementally
5. Consider edge cases: Don't just focus on happy paths

📚 Practice Problems to Try

Start practicing with these common frontend system design questions:

• Beginner: Todo App, Calculator, Image Gallery
• Intermediate: News Feed, Chat Application, E-commerce Product Page
• Advanced: Collaborative Editor, Video Streaming Platform, Social Media Dashboard

Remember: The framework is your foundation, but your technical depth and communication skills will set you apart.
